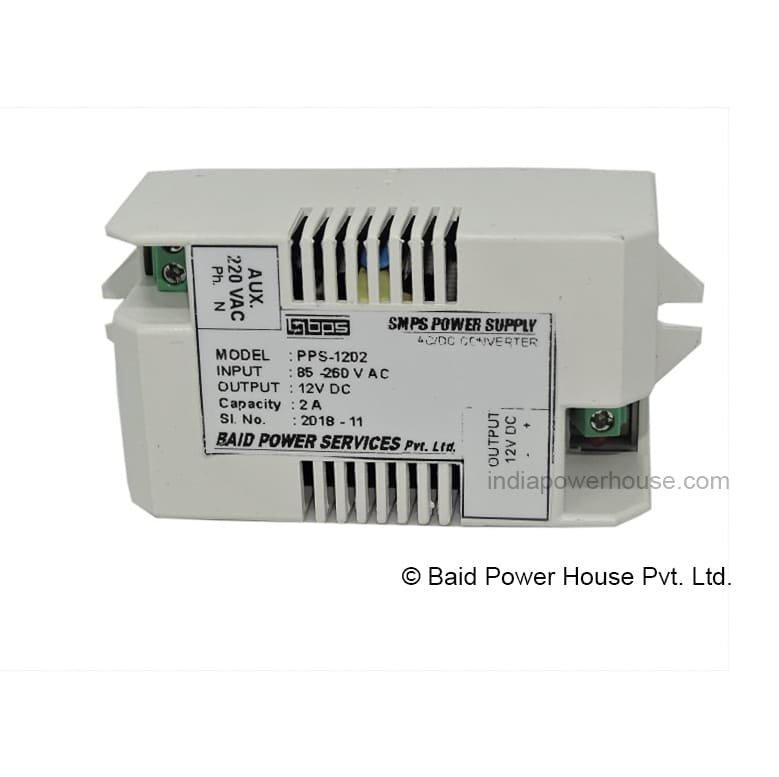

Switch Mode Power Supply (SMPS)
Features:
• Universal Input range (85 ~ 265 VAC, 50 Hz)
• Undervoltage and Overvoltage protection
• Over Load and Short circuit protection
• Low working temperature.
• Input surge current limiting.
• Ultra compact power supply.
• Industrial grade components.
• Low Ripple & Noise.
• Soft start.
• High Efficiency.
• On board EMI/RMI filter
• Over Temp Shutdown
• Reliable and cost efficient.
• Screw/ jack type connecters
• Adjustable Output Voltage +/- 10% (Sel. models)
[wpdm_package id=’4786′]
Description
Specification:
| AC Input | : 85 ~ 264 VAC (47-63 Hz) |
| DC Output | : please ref. output specification |
| Ripple/Noise | : Less than 1% Pk-Pk (BW 20 Mhz) |
| Over Voltage | : set at 125% (+/-5%) of output voltage |
| Withstand Voltage | : I/P-O/P : 3Kv. |
| Line Regulation | : +/- 1% on full load |
| Load Regulation | : on main of +/- 1% |
| Working Temperature | : 10~60 Deg.C. |
| Efficiency | : >75% typical @ full rated load |
| Safety Standard | : to comply with UL 1950, IEC 950 |
| Fusing | : through MOR/ Glass fuse. |
| Protection | : Overload, Over voltage & Short Circuit Protected. |
Select the right Supply
• Multiple output models available on request
• Custom made supplies made for your requirement
• Special models available for battery charging
• Optional paralleling facility with N+1 diode
| Voltage (Volt) |
Amperes (Amp.) |
| 5 | 1/2/3/5/10 |
| 12 | 1/2/3/5/10 |
| 24 | 1/2/3/5 |
| 24 | 1/2/3/5 |
