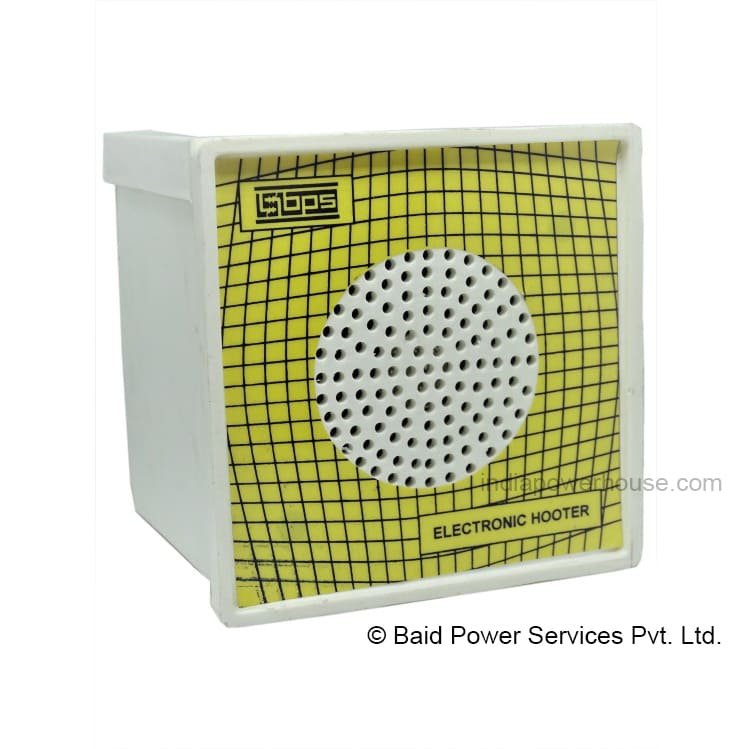

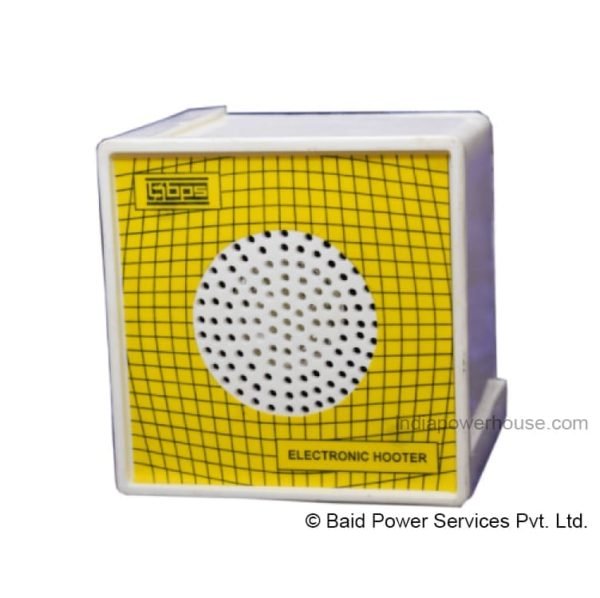

Electronic Hooter
Feature:
• LOW POWER CONSUMPTION
• STANDARD HOUSING(96 X 96)
• AUTO SOUND SELECTION ON FAULT CONDITIONS
Description
| POWER HOUSE offers I.C. Based Solid State Electronics hooters suitable for control panel / control desk and other alarm annunciation boards with many unique features. |
| Solid State: |
| Hooters are IC based with professional grade components and hence more reliable than the electro mechanical hooters which are subject to frequent coil burnout. |
| Low Power Consumption: |
| Power consumption is less then 25% of conventional electro mechanical hooters. |
| Wide Input Supply Voltage: |
| Power House electronic hooters are available for different input supply voltage e.g. 12 V. DC to 220 V. AC |
| Different Sound: |
| Hooters with different sounds are available. |
| Multiple sound (4 in one): |
| Series PEH4 has provisions for 4 incoming signals (12 V or 24 V). Positive signals from different fault location may be fed to the hooter. Each fault condition will trigger a different sound. With addition of this facility, the attendant can visualize cause of fault from a distance and may approach with particular tools/ spares for particular fault removal. Thus saving of time. |
| Continuous Rating: |
| Power House solid state hooters are tested for continuous operation. |
| Easy Flush Mounting: |
| Mounting is suitable for standard meter cutting size. (92X92 mm) |
| Select the ideal hooter | ||
| Model No.* |
Sound | |
| variety | Selection | |
| PEH-1 | Single sound | Switch/Terminal |
| PEH-2 | Double sound | Switch/Terminal |
| PEH-3 | four sound | Switch/Terminal |
| PEH-4 | Four sound | Automatic |
| * Standard supply voltage 12V DC,24 V DC, 30V DC, 220V AC | ||
